Sunroom Glass House Series

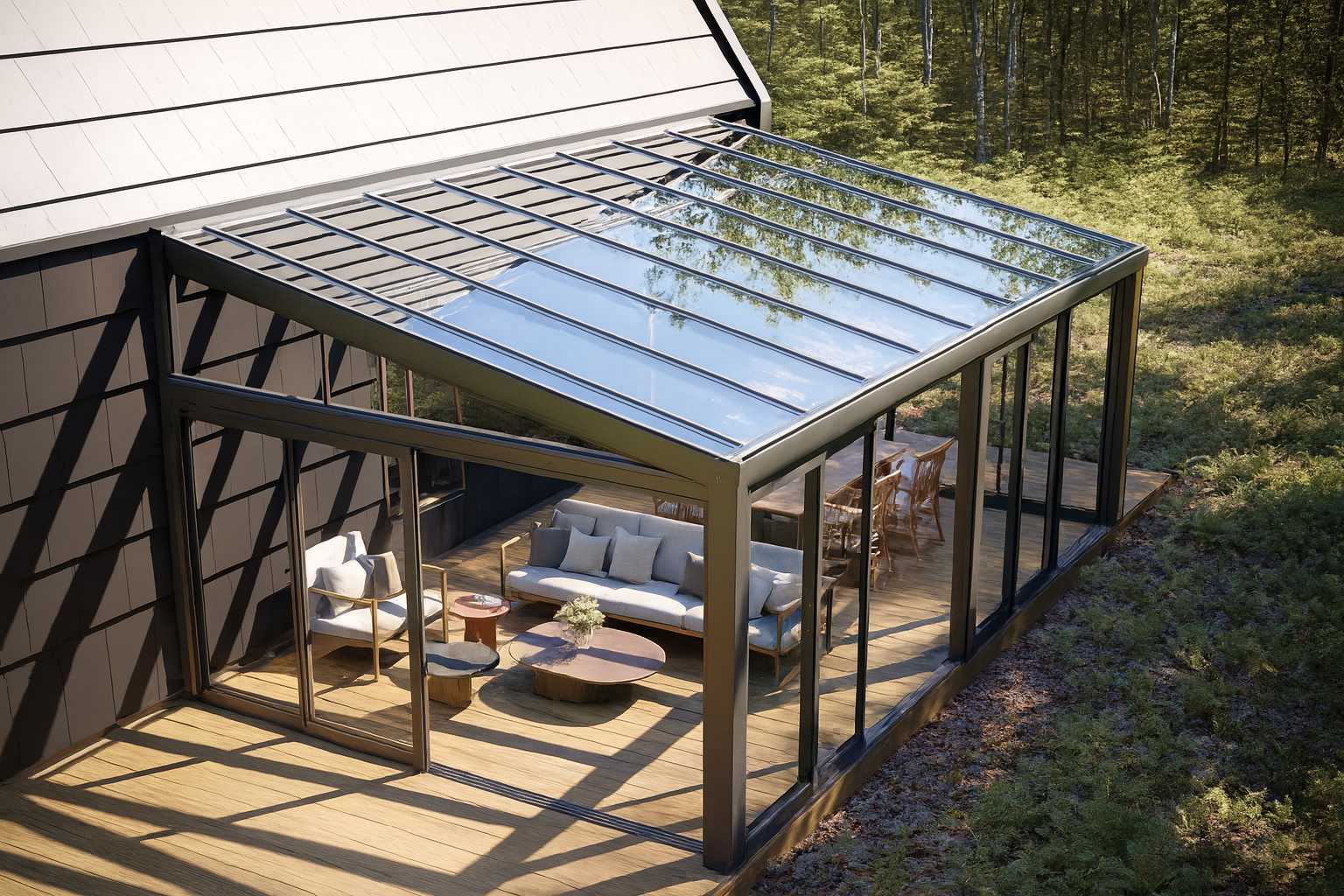

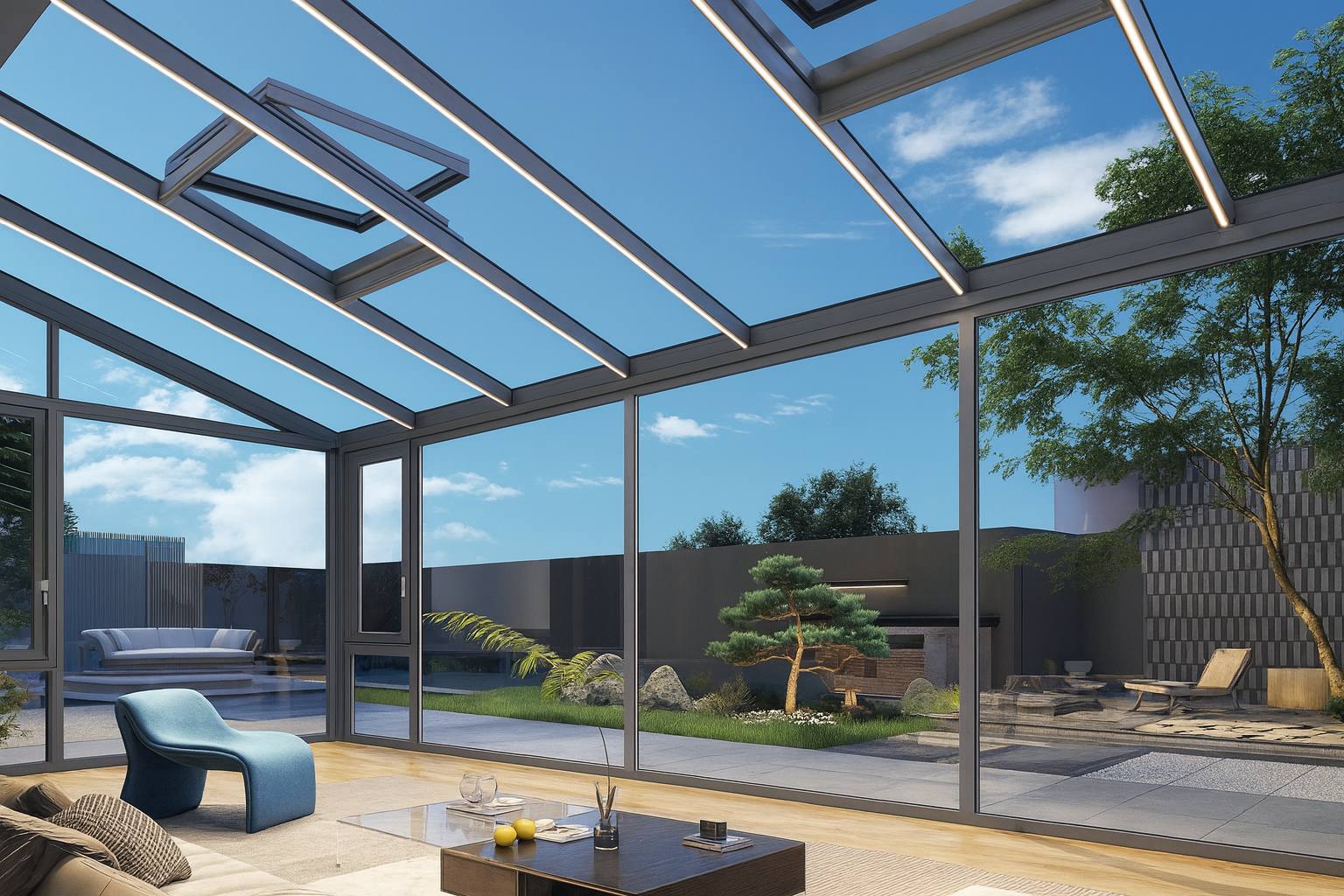

Sunroom Glass House Series – C-L125

Description
The Sunroom Glass House Series – C-L125 is a premium aluminum-glass enclosure system designed to create bright, modern, and weather-protected spaces. Built with heavy-duty thermal-break aluminum and full tempered glass panels, this system expands your living area while maintaining a clean, open architectural look. Ideal for lounges, patios, dining extensions, and garden rooms.

Key Features

• Full tempered glass roofing and wall system
• 125mm heavy-duty thermal-break frame
• Slanted glass roof for natural lighting and efficient water run-off
• Wide sliding door panels with smooth, quiet operation
• EPDM weather-sealed system for rain, wind, and dust protection
• Slim modern frame design for maximum visibility
• Modular and customizable layout
• Comfortable indoor-outdoor living for all seasons

Recommended Applications

• Residential patios and outdoor lounges
• Garden extensions and sunrooms
• Coffee shops and commercial outdoor spaces
• Poolside enclosures
• Rooftop and balcony glass rooms

Available Configurations

• Full glass wall system
• 2-panel / 3-panel / 4-panel sliding doors
• Fixed glass panels
• Operable roof vent window
• Custom sizes and layouts available

Technical Specifications

Frame System
• Profile Code: C-L125
• Main Structure: 125mm thermal-break aluminum
• Wall Frames: 105–125mm heavy-duty system
• Profile Wall Thickness: 1.4mm–2.0mm
• Finish: Powder-coated aluminum

Glass System
• Roof Glass: 5mm + 12A + 5mm double tempered
• Wall Glass: 5mm or 6mm tempered (double-glazed optional)
• Glass Options: Clear, tinted, frosted

Sealing & Insulation
• EPDM composite sealing strip
• PA66-GF25 insulation strip
• Integrated drainage and water channel design

Hardware System
• Heavy-duty sliding door rollers
• Aluminum + stainless steel hardware for outdoor durability
